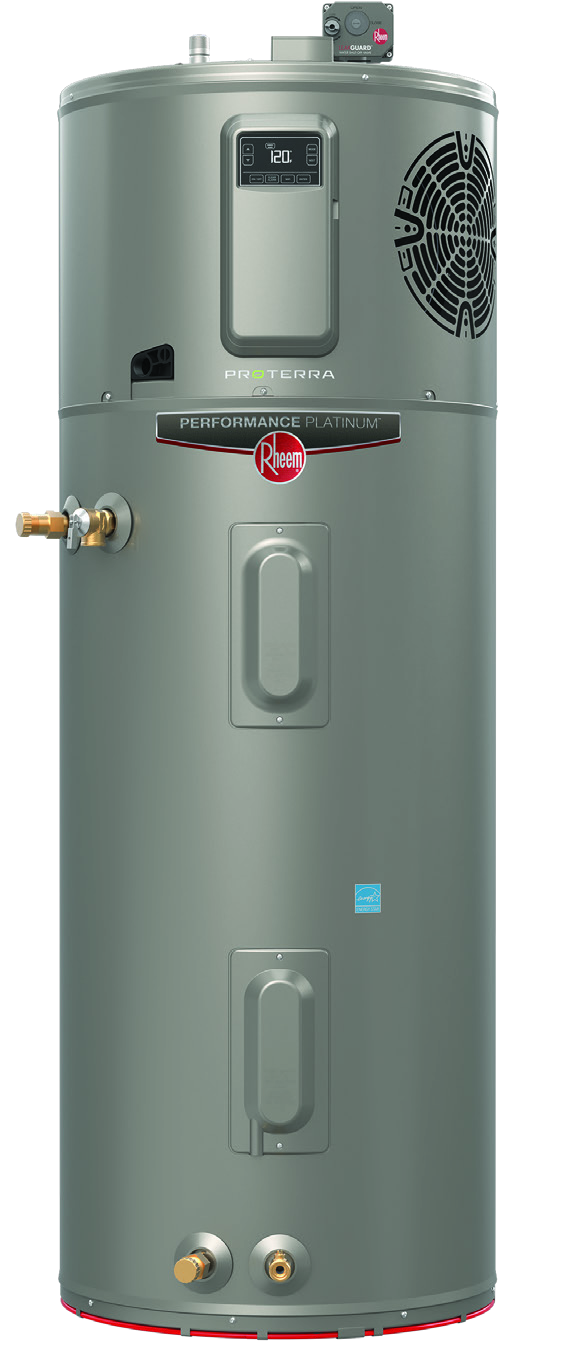

Rheem XE50T10HS45U1 ProTerra 50-Gallon 240V Smart Hybrid Heat Pump Water Heater with LeakGuard

Product Description

Rheem Performance Platinum ProTerra XE50T10HS45U1 is a 50-gallon nominal, 45-gallon rated-storage hybrid electric heat-pump water heater. Its model-specific Uniform Energy Factor is 3.88. The 240V configuration uses 4,500W elements and a 30A breaker. EcoNet Wi-Fi supports connected control. LeakGuard includes leak detection and an automatic shutoff valve. It supports top and side water connections and is duct-ready. Ten-year limited tank and parts coverage is subject to written warranty terms.

Specifications

• Nominal / rated storage: 50 / 45 US gallons
• Electrical supply: 240V
• Element wattage: 4,500W
• Breaker size: 30A
• UEF: 3.88
• First-hour rating: 67 gallons
• Recovery at 90°F rise: 27 GPH
• LeakGuard: Leak detection plus automatic shutoff valve included
• Connectivity: EcoNet Wi-Fi
• Water connections: Top and side
• Limited tank / parts warranty: 10 years; terms apply
• Tank diameter (manufacturer specification sheet): 22-1/4 inches
• Detailed drawing height A (manufacturer specification sheet): 61-3/4 inches; summary table rounds tank height to 62 inches
• Height H with illustrated ductwork: 78-5/8 inches; installation drawing dimension, not bare tank height
