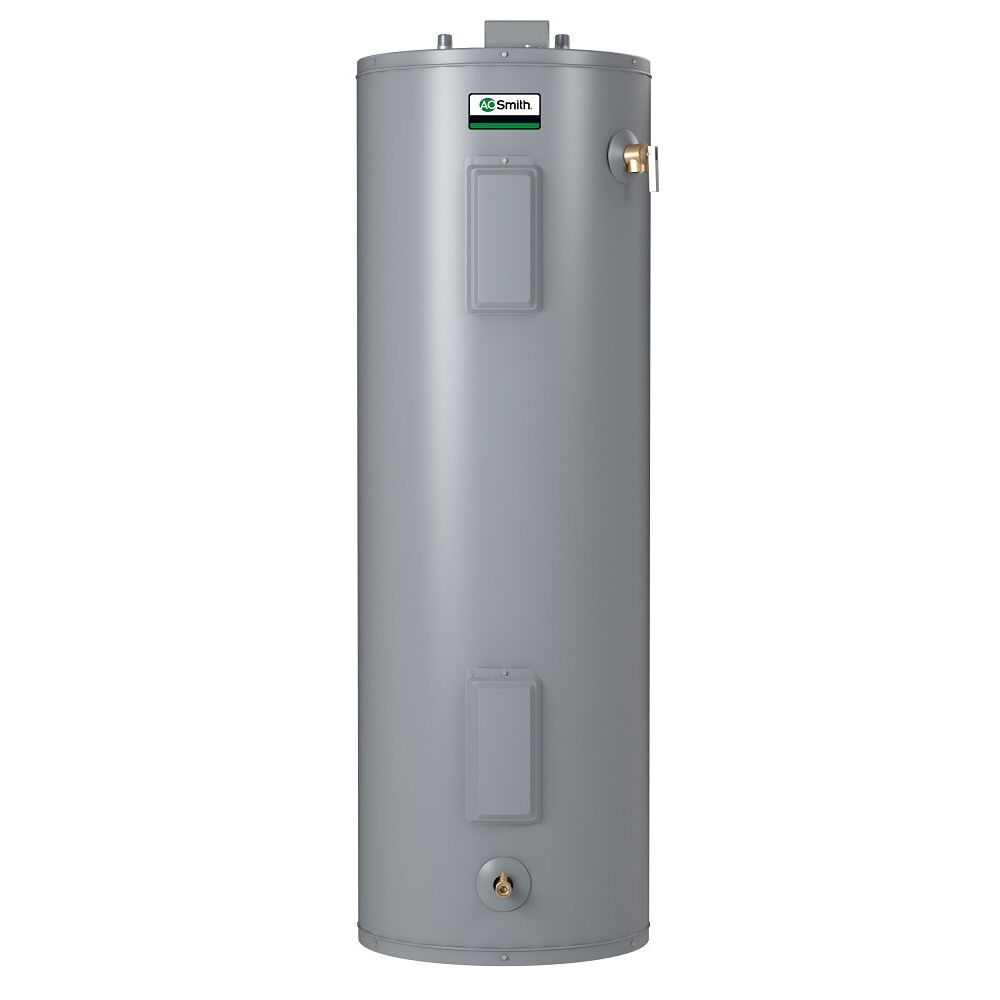

A.O. Smith LTE-80 250 80-Gallon 277V 12.2kW Single-Phase Light-Service Commercial Electric Water Heater

Product Description

A.O. Smith LTE-80 series 250 is a light-service commercial electric water heater with 80-gallon nominal capacity and 72-gallon rated storage. The selected manufacturer configuration uses 277V single-phase power and two 6,100W elements operating simultaneously for 12,200W maximum input. It is intended for indoor commercial applications with intermittent hot-water demand. The non-ASME tank has top water connections, a brass drain valve and CoreGard anode protection. Limited warranty coverage is six years on the tank and one year on parts, subject to written terms.

Specifications

• Manufacturer model / series: LTE-80 250
• Manufacturer SKU: LTE-80
• Selected configuration: 277V single-phase / 12,200W
• Nominal / rated storage: 80 / 72 US gallons
• Elements: Two 6,100W elements; simultaneous operation
• ASME tank: No
• Installation: Indoor commercial
• Height / diameter: 60.5 / 24 inches
• Water connections: 3/4 inch, top
• Limited tank / parts warranty: 6 years / 1 year; written terms apply
• Full supplier ordering reference: LTE 80 40R024000 250 — 277V, single phase, 12.2kW
