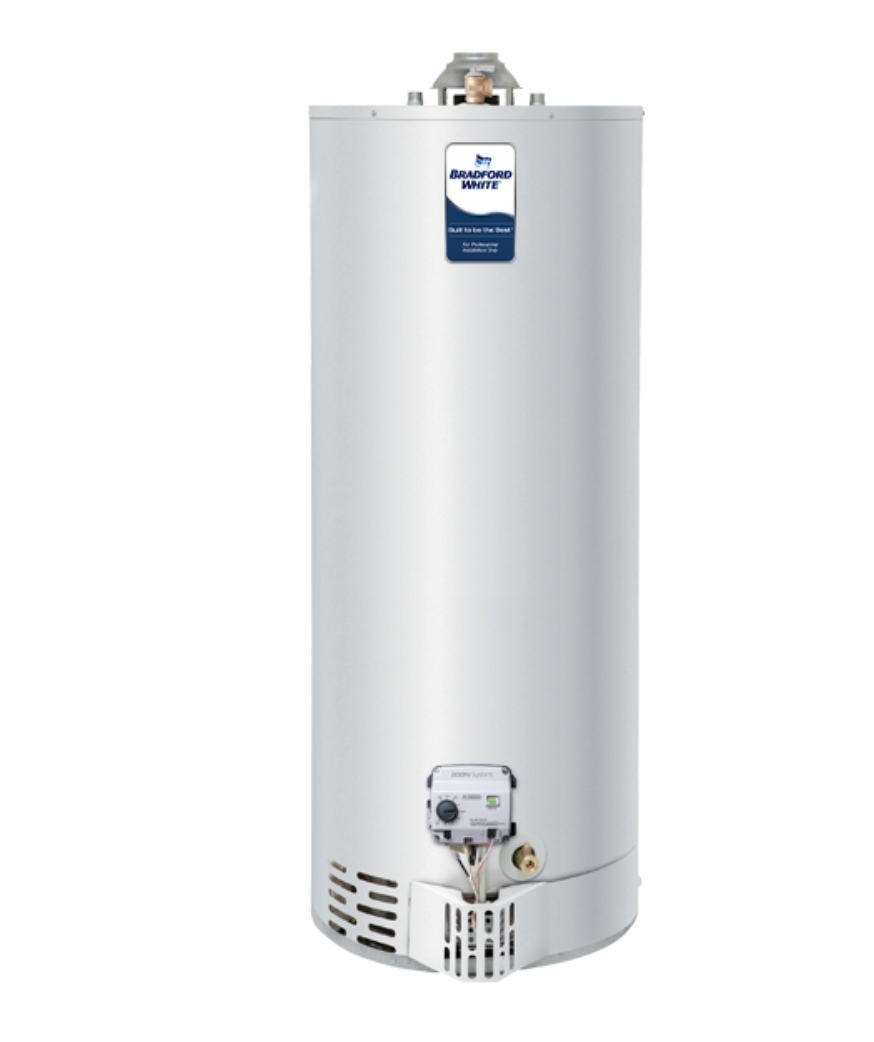

Bradford White URG250T6N 50-Gal Ultra-Low NOx Gas Water Heater

Product Description

Bradford White URG250T6N is a residential ultra-low NOx atmospheric-vent natural gas water heater with a 50-gallon nominal tank, 47-gallon DOE-rated storage and 48,000 BTU/h input. Its Eco-Defender burner system, ICON gas control, Vitraglas tank lining, protective anode rod and Hydrojet system support combustion control, corrosion resistance and sediment management.

Specifications

• Manufacturer / Brand: Bradford White
• Model / MPN: URG250T6N
• Nominal / DOE-rated storage: 50 / 47 US gallons
• Fuel / input: Natural gas / 48,000 BTU/h
• UEF: 0.63
• First-hour rating: 81 gallons
• Recovery: 43 US gallons/hour at 90 F rise
• Floor to flue connection: 60-5/16 inches
• Jacket diameter: 22 inches
• Water connections: 3/4-inch NPT
• Gas connection: 1/2-inch
• Limited warranty: 6-year tank and parts; terms apply
• Approximate shipping weight: 160 lbs

Installation & Compatibility

Confirm the model, dimensions, connections and installation requirements against the supplied unit and manufacturer instructions. Manufacturer warranty coverage depends on the product, application and applicable written terms.
